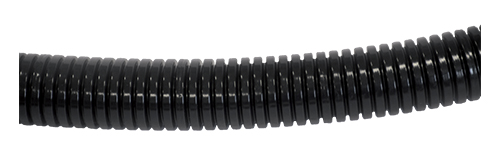

CAPRILOK rugged plastic conduit
The CAPRILOK range offers multiple versions of spiral plastic conduits for various applications, including solutions for dynamic uses, Reinforced for enhanced resistance and specialist Robotic options.
Combined with the CAPRILOK fittings in various styles, it offers a comprehensive and adaptable solution.
Benefits
UV resistant
Material
Halogen-free Polyamide 6 or 12 (for Robotic)
Special features
Self-extinguishing
Antimagnetic
Combining flexibility, extra-strength & modularity for simple installation & ultimate protection
From industrial to harsh, robotics to railway applications, CAPRILOK rugged conduit has you covered
Cable types
Protection category
Reinforced type
- Application: harsh mechanical
- Polyamide 6 (UL 94 V2)
- Static operating temperature: -40 °C to +120 °C
- Dynamic operating temperature: -20 °C to +100 °C
- Strength compression : 600 N / 50 mm
- Ingress protection: IP66 / IP68
Robotic type
- Applications: robotic and dynamic
- Polyamide 12
- Static operating temperature: -50 °C to +100 °C
- Dynamic operating temperature: -20 °C to +85 °C
- Strength compression : 225 N / 50 mm
- Ingress protection: IP66 / IP68
I2F2 type
- Applications: robotic and railways
- Polyamide 6 (UL 94 V0)
- Static operating temperature: -40 °C to +120 °C
- Dynamic operating temperature: -20 °C to +100 °C
- Strength compression : 375 N / 50 mm
- Ingress protection: IP66 / IP68
Discover Eaton's full range of plastic conduit
Eaton's range of plastic conduits includes the entry-level, cost-effective CAPRISOUPLE for conventional industrial applications and two versions of the CAPRILOK: the Standard that encompasses flexibility and strength for industrial, harsh mechanical, rail environments and more and the rugged option that offers additional crush resistance and specialised options including for robotic processes.
Capri - Over 60 years expertise and knowledge
For over 60 years, Capri has been known as a world-class solution in electrical termination for industrial and hazardous applications. Today, alongside Redapt and Raxton it continues to be at the forefront of innovation in the market.
productfamily.specification
CAPRILOK rugged plastic conduits - ordering information
Reinforced type
| Conduit diameter | |||||
| Size | External | Internal | Bending radius | Cond. (m) | Catalogue number |
| 9 | 13.0 | 9.0 | 35.0 | 50 | CAP670997 |
| 11 | 15.8 | 11.3 | 45.0 | 50 | CAP671197 |
| 16 | 21.2 | 14.5 | 60.0 | 50 | CAP671697 |
| 21 | 28.5 | 21.3 | 70.0 | 50 | CAP672197 |
| 29 | 34.5 | 26.8 | 75.0 | 50 | CAP672997 |
| 36 | 42.5 | 34.6 | 90.0 | 25 | CAP673697 |
| 48 | 54.5 | 46.0 | 95.0 | 25 | CAP674897 |
Robotic type
| Conduit diameter | |||||
| Size | External | Internal | Bending radius | Cond. (m) | Catalogue number |
| 7 | 10.0 | 6.2 | 15.0 | 50 | CAP670786 |
| 9 | 13.0 | 9.9 | 25.0 | 50 | CAP670986 |
| 11 | 15.8 | 11.7 | 30.0 | 50 | CAP671186 |
| 16 | 21.2 | 16.6 | 35.0 | 50 | CAP671686 |
| 21 | 28.5 | 21.7 | 45.0 | 50 | CAP672186 |
| 29 | 34.5 | 27.7 | 55.0 | 25 | CAP672986 |
| 36 | 42.5 | 35.5 | 60.0 | 25 | CAP673686 |
| 48 | 54.5 | 46.6 | 70.0 | 25 | CAP674886 |
I2F2 type
| Conduit diameter | |||||
| Size | External | Internal | Bending radius | Cond. (m) | Catalogue number |
| 9 | 13.0 | 9.4 | 25.0 | 50 | CAP670937 |
| 11 | 15.8 | 11.7 | 35.0 | 50 | CAP671137 |
| 16 | 21.2 | 16.6 | 45.0 | 50 | CAP671637 |
| 21 | 28.5 | 21.7 | 50.0 | 50 | CAP672137 |
| 29 | 34.5 | 27.7 | 60.0 | 50 | CAP672937 |
| 36 | 42.5 | 35.1 | 65.0 | 25 | CAP673637 |
| 48 | 54.5 | 46.6 | 75.0 | 25 | CAP674837 |
Looking for fittings or accessories?
