BECO INTEGRA CART KCL
BECO INTEGRA CART cartridge housings are manufactured of stainless steel AISI 316L and can be used for the filtration of liquids with high flow rates in Life Science applications. This series is available as 1 x 40" version. These housings are ATEX certified.
核心功能
- ATEX certified
- The application of material AISI 316L avoids corrosion even at long term use
- Easy and fast cartridge change
- For both ways of cartridges suitable
- The optimized design allows thorough and fast cleaning
- Low product loss thanks to compact design
- Resistant to hot water or steam sterilization
相关产品
-
BECO INTEGRA CART KA
BECO INTEGRA CART KA
-
BECO INTEGRA CART KA
BECO INTEGRA CART KA
-
BECO INTEGRA CART KHF
BECO INTEGRA CART KHF
-
BECO PROTECT CL
BECO PROTECT CL
-
BECO PROTECT HF
BECO PROTECT HF
-
Spare Parts Bag Filter Housings
Spare Parts Bag Filter Housings
Specifications

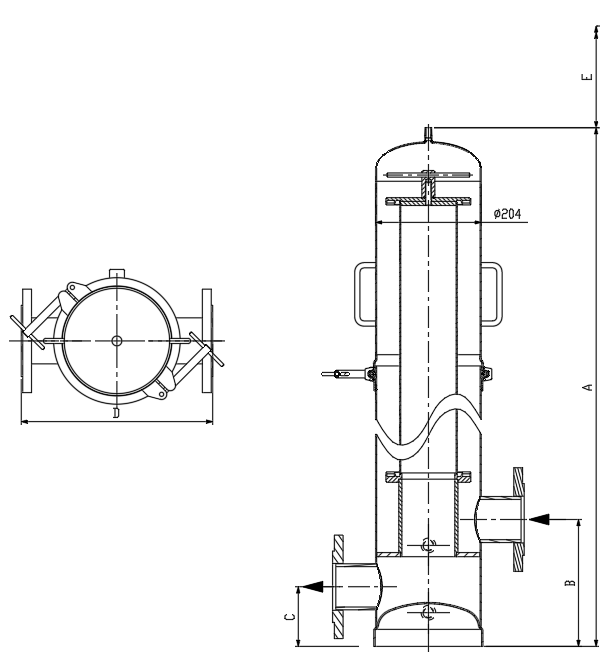

| Article no. | Qty | Cartridge length | Dimensions inch (mm) | Connections | Volume | Weight | Perm. pressure psi (bar) | ||||
| inch | A | B | C | D | E | In-/ Outlet | gal (l) | lb (kg) | liquid | gaseous | ||
| KCL14XF8 | 1 | 40 | 58.18 (1,478) | 51.26 (1,302) | 7.13 (181) | 7.91 (201) | 39.37 (1,000) | 3" | 115 (43.5) | 84.7 (38.4) | 145 | 58 (10 | 4) |
| KCL14XG8 | 1 | 40 | 58.18 (1,478) | 51.26 (1,302) | 7.13 (181) |
7.91 (201) | 39.37 (1,000) | 3" | 115 (43.5) | 84.7 (38.4) | 145 | 58 (10 | 4) |
