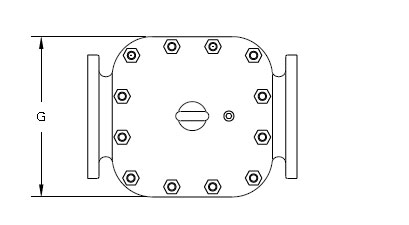

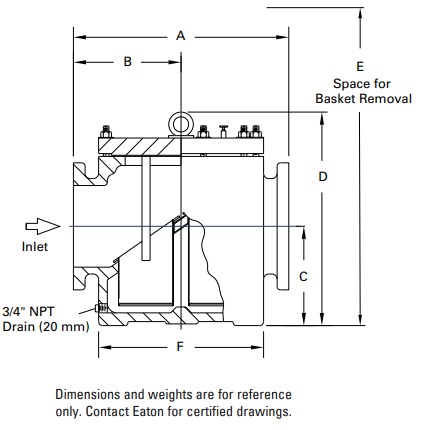

Model 510

The Model 510 Simplex Strainer is designed for larger piping systems having flow rates up to 40,000 gpm.  Unlike other large size simplex strainers the Model 510 has a multi-basket design.  Four strainer baskets per unit strain the process media and give the strainer an extremely high dirt removal capability.  This is an important consideration in larger size strainers that, because of their size and design, take longer basket leaning or change out.  The longer the strainer stays in service between cleanings, the less expensive its operating costs.

Manufacturing Type
Cast Iron, Carbon Steel, Special alloys, With inner lining
Pressure Rating
70-300 psi (4.8-20.7 bar)


  • Four baskets per strainer
  • Bolted cover
  • Straight-through flow design
  • Compact
  • Threaded drain
  • Perforated or mesh stainless baskets standard
  • Low profile for easy basket removal


  • Basket perforations from 1/32" to 1/2"
  • Basket mesh from 20, 40 and 60
  • Monel baskets
  • Vent valves
  • Drain valves
  • 1/4" NPT taps
  • Basket flange gaskets
  • Cover lift davit
  • Bronze or stainless steel construction
  • Pressure differential gauge and switch connections
  • Magnetic basket inserts


  • Wastewater
  • Spray Nozzle Systems
  • Heat Exchanger Protection
  • Cooling Towers
  • Boiler Feed Water
  • Machining Fluids
  • Deep Well injection
  • Descaling Systems
  • Lube Oil Systems
  • Irrigation
  • Paper Coating
  • Refining
