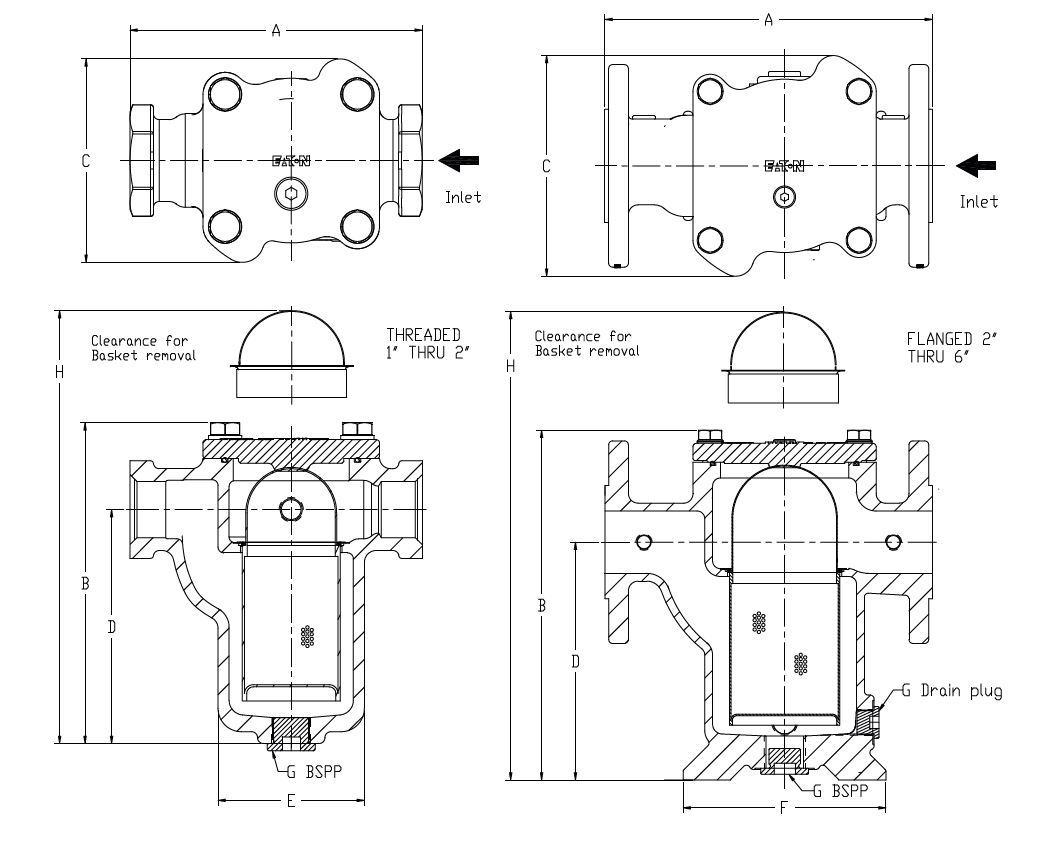

Model 72X

Specifically designed for conformance in the European market, the model 72X Simplex cast manual strainer complements Eaton’s range of manual pipeline strainers. The Simplex 72X pipeline strainer range conforms to the Pressure Equipment Directive (PED) with superior sealing and surface finish characteristics to legacy models. The strainer range is CE-marked to PED and is compliant with the EN13445 and AD 2000 pressure vessel codes. Providing full bypass-free filtration to protect process equipment, typical applications for the strainers include chemical, petrochemical and water pipelines where temporary shutdown for cleaning or changeout is possible

Manufacturing Type
Ductile Iron, Stainless steel
Pressure Rating
10 bar (Ductile Iron) /16 bar (Stainless steel) @120 °C


  • Flanged or threaded DIN and ANSI end connections
  • Ductile Iron models designed to 10 bar, 120°C
  • Stainless steel models designed to 16 bar, 120°C
  • Bolted Cover
  • Machined basket seat with o-ring seal
  • Large capacity 316 stainless steel baskets, perforated or mesh
  • Bottom drain port
  • Mounting feet for stable installation for flanged units 2" and larger


  • Basket perforations from 1/32" to 1/2"
  • Basket mesh from 20 to 400
  • NBR, EPDM, FPM or FEP encapsulated FPM O-rings
  • Gauge/vent taps -  1/4" BSP
  • Vent valves
  • Pressure differential gauge and switch
  • Magnetic basket inserts


  • Model 72X basket strainer provides bypass-free filtration to protect process equipment in most demanding applications, including chemical, petrochemical and water pipelines that can be temporarily shut down for strainer basket cleaning or changeout.
