Litex Elite – High performance LED industrial light

The Litex Elite is the third iteration of the class-leading luminaire - Litex. Designed for high efficiencies, the Litex Elite delivers massive energy savings (ECA compliant) and rapid capital investment payback through the use of sophisticated LED technology.

Built to industrial specifications - IP65, IK10 and extended operating temperature - Litex Elite is the perfect light for industrial applications such as maintenance sheds, cold store, and a wide range of manufacturing, warehouse and amenity locations.

IK10 Impact protection
Rapid installation
IP65 plug and play out the box

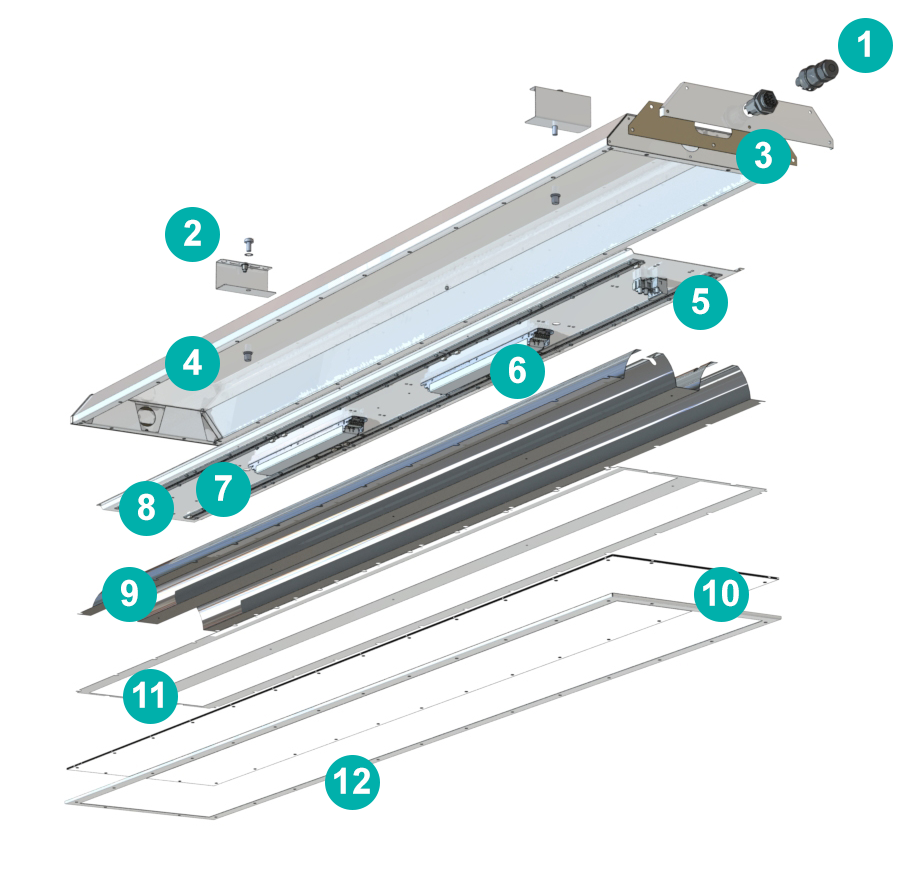

Industrial Class - Engineered for high performance

  1. IP65 Plug and Play panel mounted connector

  2. Versatile mounting brackets accessory for trunking mounting, drop rod or S-hook chain suspension

  3. Sealing gasket to maintain IP65 ingress protection

  4. Robust mild steel powder coated housing

  5. Fused as standard for extra protection

  6. Premium LED driver

  7. Aluminium gear tray for optimised LED thermal management

  8. Leading efficiency LEDs 5000K, Ra +80

  9. Anodized aluminium reflectors

  10. Impact resistant TPa polycarbonate cover

  11. Contrast reduction cover

  12. Steel panel frame for sealed IP65 body

Works in hot or cold

The extended -40˚C to +50˚C operating temperature makes the Litex Elite suitable for a wide range of sites including cold storage.

Plug, play and go

Rapid installation through the IP65 rated connector, suspensions and surface mount bracket options. Providing dust and low-pressure jet wash protection straight out of the box.

One light, one fixing, one flexible solution

The Litex Elite has the option of an IP65 fully integral emergency unit with optics to suit the location. The narrow-beam reflector on the high-bay variant is for higher rack or aisle areas and escape routes up to 26 metres. While, the wide-beam optic on the mid bay version is for illuminating open areas up to 14 metres. Class-leading spacings across the integral emergency range offer reduced capital and installation costs.

Eaton’s 5 year extended warranty comes as standard, for quality you can trust

When purchasing Eaton lighting products, you are safe in the knowledge that you are supported by our simple, reliable warranty with no hidden caveats. We support: 24/7 operation with no annual hours usage restrictions, 12 months parts and labour with an additional 48 months on parts and no need to register your product.

Personalize to the requirements you need

Litex Elite has been designed with a range of sensor, emergency integration and installation options to suit the building space and use.

For example, Litex Elite’s high sensitivity IP65 PIR sensor detects movement in a 40m detection zone at a 15m mounting height, making it suitable for high bay applications such as warehouses and factories.

PIR Sensor for reduced running costs and handsfree control

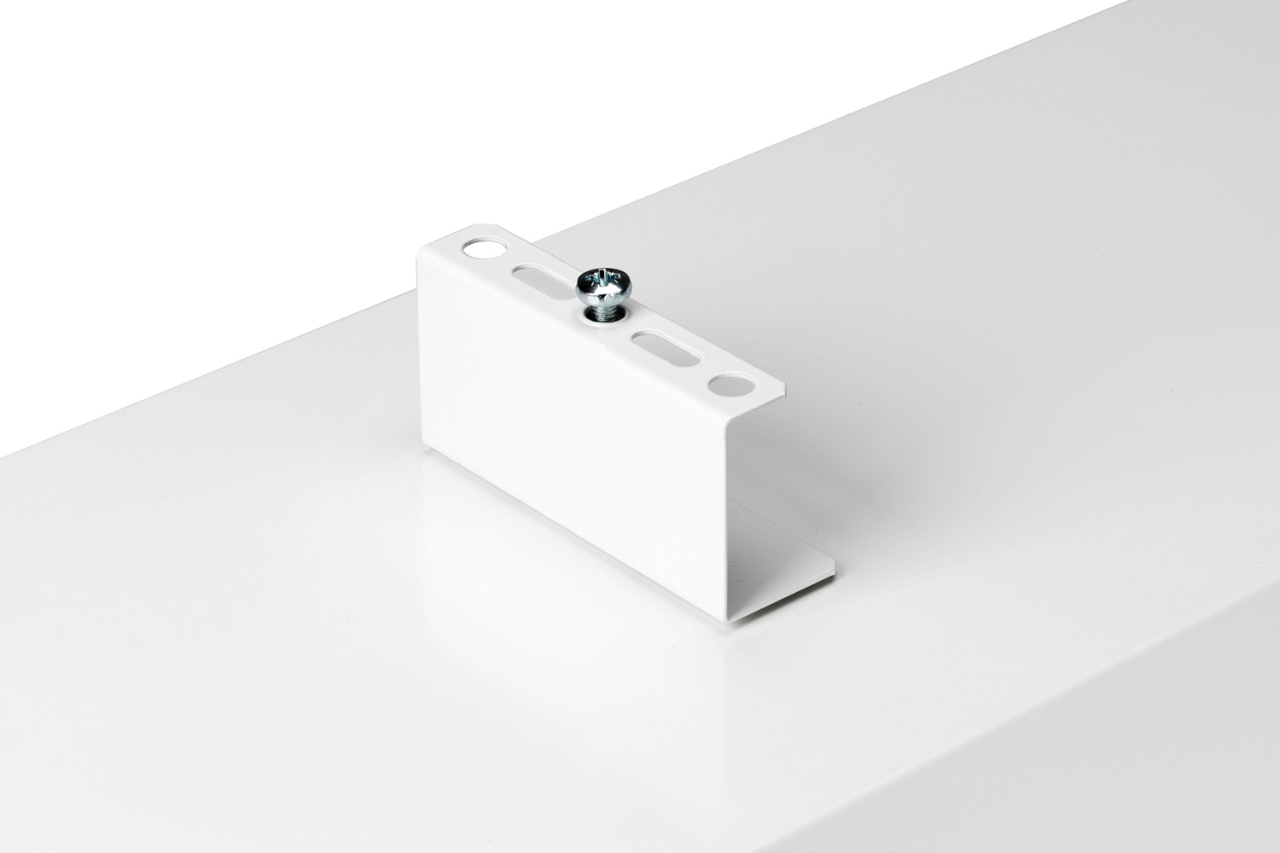

Suspension brackets for increased flexiblity when mounting

Range of emergency integration options

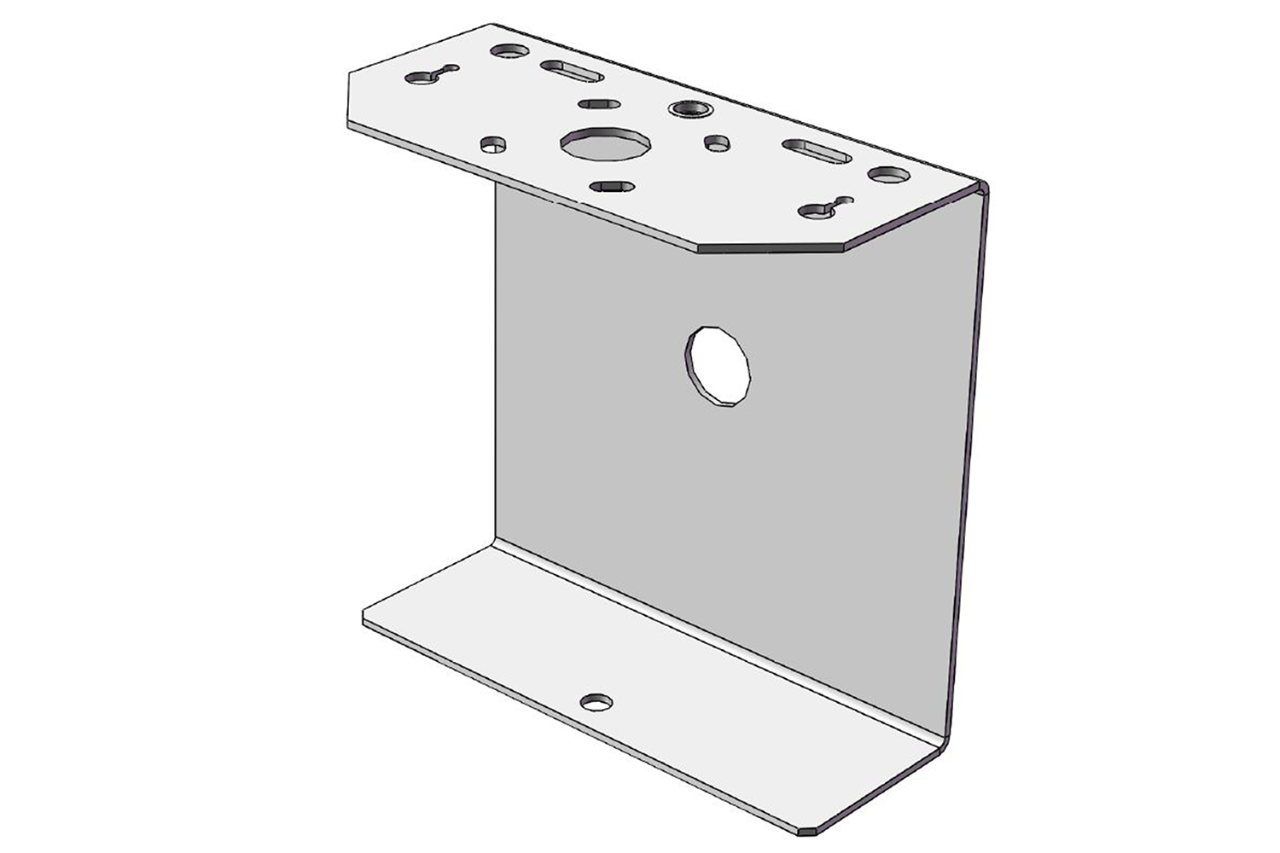

BESA Mounting bracket for tidier conduit

Illuminating the South West of England’s leading sub contract plant

FInd out how Litex Elite was used at MetalTech Precision's manufacturing facility to reduce energy consumption and CO2 emissions.

Energy efficient, reliable and compliant - with a payback of as little as 9 months...

Energise your industrial lighting - Maximise the value of your investment with LED lighting optimised for energy-efficiency and compliance
