4Dimension channel nuts
The 4Dimension strut system is designed for building and installing support systems for electrical, mechanical, plumbing, HVAC, and data centers in both new and retrofit industrial and commercial applications.
The system is compatible with 90 percent of current B-Line series fittings and accessories, and includes unique 4Dimension channel nuts, spring nuts, strut nuts, and accessories. Each accessory features a unique design that works seamlessly with the multi-sided channel of the 4Dimension strut system.

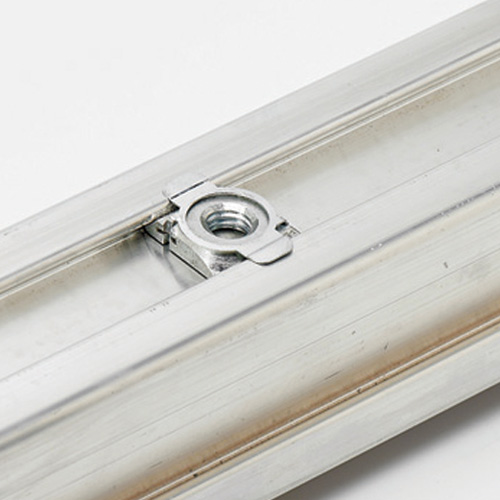

4Dimension dove-tail twirl nut
The 4Dimension dove-tail twirl nut significantly reduces installation time by easily inserting it any length of the dove-tail side of 4Dimension strut.

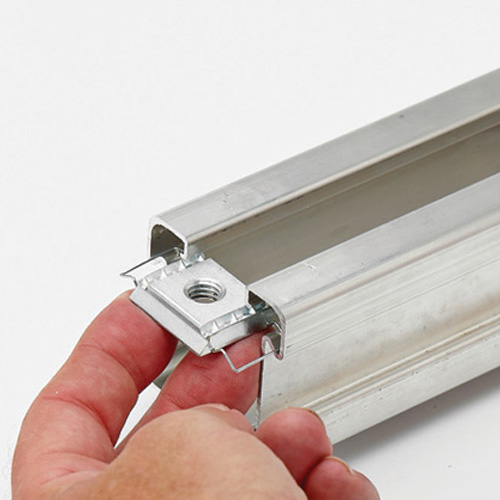

4Dimension dove-tail slide-in nut
The 4Dimension dove-tail slide-in nut allows for increased job-site flexibility. The nut can be used on all four sides of the 4D22 and the dove-tail side of the 4D21 4Dimension strut system. This allows the full length of the channel to be used, allowing installers to maximize space in small spaces.

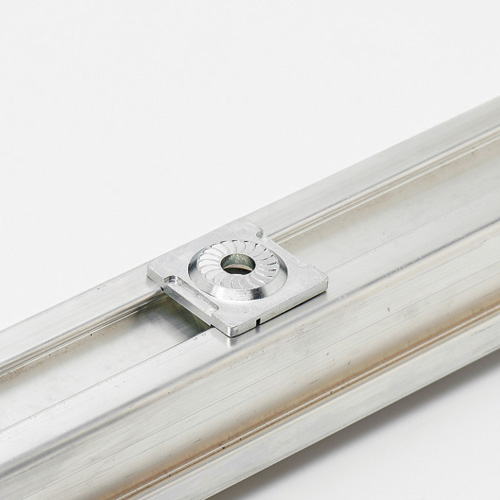

4Dimension dove-tail combo nut washer
The 4Dimension dove-tail combo nut washer is designed to install into the dove-tail side of the 4Dimension channel. This eliminates the need for a flat washer and cuts down on the number of parts needed for assembly. Additionally, the washer helps to reduce overall install time which saves both time and money on project costs.
The unique design of the 4Dimension strut channel nuts can be used on multiple sides of the 4Dimension strut channel, allowing for numerous designs and applications. The 4Dimension slide-In nuts can also be used with traditional strut.
The 4Dimension channel fittings and accessories work seamlessly with the 4Dimension strut system. For additional specifications and details, view or download the 4Dimension catalog.
4Dimension dove-tail twirl-nut
- Used exclusively with B-Line series 4Dimension strut channel, dove-tail sides
- Installs with quarter turn
- Recommended bolt length in dove-tail side - 1/2“ (12.7mm)
- Zinc plated steel or Stainless Steel Type 316 (add SS6 to part number)
- Nut thickness is 15/64" (5.9mm)
- Safety Factor 3
* Pull-out strength - use 85% load factor on stainless steel parts; Slip strength - use 50% load for stainless steel dove-tail sides. (see chart below)
Part number
4DTN224
4DTN223
4DTN228
Pull-out strength*
400 lbs.
490 lbs. .
490 lbs.
Slip strength*
300 lbs.
300 lbs.
350 lbs.
4Dimension dove-tail slide-in nut
- Can be used in dove-tail sides (4D21 & 4D22) and open side (4D22)
- Recommended bolt length in dove-tail side - 1/2“ (12.7mm)
- Can be used in traditional channel by bending wire down
- Zinc plated steel or Stainless Steel Type 316 (add SS6 to part number)
- Safety Factor 3.0
- Reference instruction sheet for proper assembly and installation
** Pull-out strength - use 85% load factor on stainless steel parts; Slip strength - use 30% load for stainless steel open side and 50% for dove-tail sides. (see chart below)
Part number
4DSN224
4DSN223
4DSN228
Pull-out strength**
Open 450 lbs. / Dove-tail 281 lbs.
Open 867 lbs. / Dove-tail 489 lbs.
Open 883 lbs. / Dove-tail 446 lbs.
Slip strength**
Open 330 lbs. / Dove-tail 300 lbs.
Open 767 lbs. / Dove-tail 300 lbs.
Open 1067 lbs./Dove-tail 300 lbs.
4Dimension strut dove-tail combo nut washer
- Used in dove-tail side of 4Dimension strut channel only
- Installs with quarter turn
- To lock combo nut washer in place a hex nut (sold separately) is required
- Zinc plated steel or Stainless Steel Type 316 (add SS6 to part number)
- Safety Factor 3
++ Pull-out strength - use 85% load factor on stainless steel parts; Slip strength - use 50% load for stainless steel dove-tail sides. (see chart below)
Part number
4DNW224
4DNW223
4DNW228
Pull-out strength ++
400 lbs.
490 lbs.
490 lbs.
Slip strength ++
300 lbs.
300 lbs.
350 lbs.
