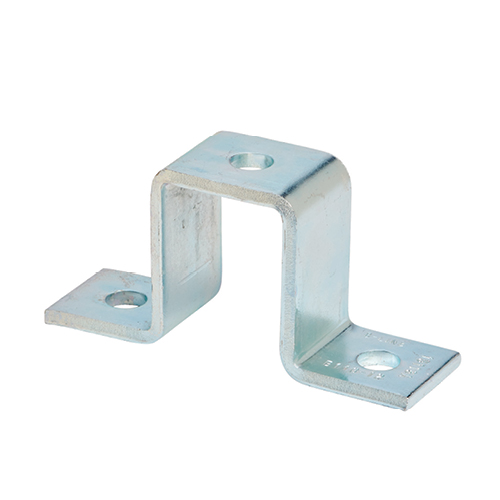

Strut fittings and accessories

In keeping with the high level of quality, durability and reliability that characterizes Eaton’s B-Line series strut system, the B-Line series fittings and accessories are available in all the materials, finishes and configurations necessary to work in conjunction with B-Line series channel.

Made from hot-rolled pickled and oiled plate or strip steel in accordance with ASTM A1018 33,000 psi minimum yield (unless otherwise noted), they provide ease of installation to help save time and money and enable the long service life that offers high value over time.

B-Line series strut systems and channel fittings - the perfect combination.

Specify and use a B-Line series strut system with B-Line series channel fittings and accessories on your next project. B-Line series strut systems using B-Line series channel fittings and accessories offer the most reliable, highest-quality metal channel solution. Contact Eaton to discover how easy ordering can be.


Materials and finishes

B-Line series fittings feature these materials and finishes unless noted otherwise:

  • Plain (ASTM A1018 33,000psi min. yield)
  • Electro-plated zinc (ASTM B633 SC3 Type III or ASTM A653)
  • Dura Green finish
  • Hot-dipped galvanized (ASTM A123)
  • Stainless Steel Type 304 (ASTM A240)
  • Stainless Steel Type 316 (ASTM A240)
  • Aluminum (ASTM B209)

Special materials and finishes are available but may require a minimum order.



Nuts and bolts are not included with the fittings and must be ordered separately unless otherwise indicated.


Pre-assembled fittings

Hex head cap screws and channel nuts come pre-assembled with some fittings. In the catalog, these fittings are indicated with designation PA.


Load data

Published load data includes a safety factor of 2.5 when used with 12-gauge (2.6mm) channel. The safety factor is the ratio of ultimate load to design load. For the rated results, use ½”-13 x 7/8” hex head cap screws and ½”-13 (N225 or TN225) channel nuts.


Available fittings and accessories

View our catalog for detailed information on B-Line series fittings and accessories.  Visit our specifications page for a summary of the products available in a variety of sizes, materials and finishes.
